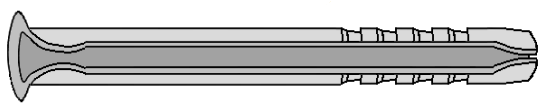

Irongrip FAN

Express nail for extreme conditions

Easy application with immediate resilience, drill + drive in = ready. Pull-out results exceeding 4 KN. For use in concrete, solid brick, solid lime-sand brick and compression proof natural stone. Well engineered: the speed nails are free of projecting interlocks, so that it is impossible for them to get caught up in the box. Increased bearing area by the big head – easy setting by ring lamellas and conical tip. Tempered spring steel – non-flammable – zinc plated and blue passivated.

Material

Tempered spring steel, 5mµ blue zinc or geomet plated

Product data

Dimension, Ø x L mm	Drill, Ø mm	Drill depth, min. mm	Insert depth, min. mm	Effective length, max. mm
6 x 30	6	35	25	5
6 x 40	6	35	30	10
6 x 50	6	35	30	20
6 x 60	6	35	30	30
6 x 80	6	35	30	40
6 x 100	6	35	30	50
8 x 70	8	45	40	30
8 x 90	8	45	40	50
8 x 110	8	45	40	70
8 x 130	8	45	40	90
8 x 150	8	45	40	110
8 x 180	8	45	40	140

Pull-out data (kN)

FAN Ø	Insert depth mm	Concrete C20/25 (B25)	Brick MZ 20	Sand-lime brick KSV 20
6 mm	30	2,95 kN	2,45 kN	1,90 kN
8 mm	40	4,45 kN	3,60 kN	2,85 kN

The test results mentioned above are to be regarded as general recommendations only. Safety factor and local conditions need to be considered.

Required safety factor: 4
